ClamAV Architecture, Behavior, and Failures (vets-api)

Last Updated: 2026-03-11

ClamAV scans uploaded files for viruses before they are stored or processed. This page explains how the scanning architecture works, how vets-api integrates with ClamAV, and how to diagnose and remediate common failures that can impact vets-api pod health or upload flows.

ClamAV Architecture, Behavior, and Failures (vets-api)

Overview

• Goal: Ensure all file uploads scanned for viruses without destabilizing vets-api pods.

• Pattern: ClamAV runs as a sidecar container in each vets-api pod; Rails talks to it via a client library.

• Risk: Because Kubernetes pod health is per-pod, ClamAV failures can mark the whole pod unhealthy, causing restarts and reduced availability. See ClamAV error logs (requires Datadog access)

High-level architecture

Components

• Vets-API Rails app

  • Uses Common::VirusScan for scanning.

  • Uses UploaderVirusScan (CarrierWave concern) and the Shrine plugin #validate_virus_free to hook scanning into upload flows.

• ClamAV sidecar container

  • Runs alongside vets-api in the same pod.

  • Exposes the ClamAV daemon on a TCP port inside the pod.

  • Pod health is impacted by both the Rails and ClamAV containers.

• vsp-infra-clamav repo (https://va.ghe.com/software/vsp-infra-clamav)

  • Houses the ClamAV Docker image and Kubernetes configuration used by vets-api.

  • Notable GitHub Actions:

    • mirror-images.yml: builds and pushes ClamAV images to ECR.

    • s3_sync.yml: builds the ClamAV image, extracts DBs, syncs them to S3.

vets-api application integration

Common::VirusScan

Location: lib/common/virus_scan.rb

• API

  • Common::VirusScan.scan(file_path, upload_context: nil) -> true/false

  • Raises on hard failures (e.g., temp file missing, ClamAV unreachable)

• Behavior

  • Verifies the temp file exists; raises "Failed to create temp file" if not.

  • Mock mode:

    • If Settings.clamav.mock is true, returns true immediately (used for non-prod/testing).

  • Collects file metadata for audit:

    • Hashed basename (SHA-256), file size, and content type (Marcel).

  • Measures scan duration using a monotonic clock.

  • Calls perform_scan(file_path) and expects a hash:

    • { safe: true/false, virus_name: '...' }

  • Emits a scan audit log:

    • Message: "ClamAV Virus Scan Audit".

    • Fields:

      • event: 'virus_scan'

      • user_uuid, ip_address from RequestStore.store['additional_request_attributes'] (currently set to nil due to PII concerns, pending further guidance)

      • file_name (hashed), file_size, content_type

      • scan_result: "clean" or "infected"

      • virus_name, scan_duration_ms, upload_context

  • On any exception:

    • Emits an error audit log (scan_result: 'error').

    • Re-raises the error to the caller.

perform_scan

• If file_path starts with clamav_tmp/:

  • Treats it as already in the ClamAV temp directory.

  • Sets mode 0640.

  • Calls ClamAV::PatchClient.new.scan_with_result(file_path).

• Feature Flag :clamav_scan_file_from_other_location:

  • Enabled:

    • Logs that it is creating a ClamAV tmp file.

    • Calls #scan_file_from_other_location(original_path):

      • Ensures Rails.root.join('clamav_tmp') exists.

      • Sets original file mode 0640.

      • Builds a unique temp path under clamav_tmp/

      • Copies the original file to that path; verifies the copy exists.

      • Sets the temp file mode 0640.

      • Calls ClamAV::PatchClient.new.scan_with_result(temp_path).

      • Always attempts to delete the temp file (and logs success/failure).

  • Disabled:

    • Logs a warning: ClamAV scan from other locations is disabled.

    • Returns { safe: false, virus_name: nil }, which callers treat as unsafe.

UploaderVirusScan (CarrierWave integration)

Location: app/uploaders/uploader_virus_scan.rb

• Inclusion

  • Included into CarrierWave uploaders that require virus scanning.

  • Registers a callback:

    • before(:store, :validate_virus_free)

• Runtime behavior

  • Only active in production:

    • Immediately returns unless Rails.env.production?

  • Uses Common::FileHelpers.generate_clamav_temp_file(file.read) to write the upload to a ClamAV-readable temp file.

  • Calls Common::VirusScan.scan(temp_file_path).

  • Deletes the temp file after the scan.

  • If the scan result is false (infected or treated as unsafe):

    • Calls file.delete on the uploader file object.

    • Raises UploaderVirusScan::VirusFoundError, "Virus Found + #{temp_file_path}".

Shrine validate_virus_free plugin

Location: lib/shrine/plugins/validate_virus_free.rb

• Purpose

  • Shrine-based uploads (e.g., some form submissions) use this plugin to validate uploads are virus-free before persistence. It is the Shrine counterpart to CarrierWave’s UploaderVirusScan.

• Behavior

  • Attachers call validate_virus_free(message: nil) (e.g., from a Shrine validation block).

  • Wraps the scan in a Datadog trace "Scan Upload for Viruses".

  • Downloads the Shrine file, writes it to a ClamAV temp path via Common::FileHelpers.generate_clamav_temp_file, then calls Common::VirusScan.scan(temp_file_path) (and, when implemented, can pass upload_context: for audit logging).

  • Deletes the temp file after the scan.

  • If the scan returns false: logs a virus-detected warning (with hashed file name and optional upload context from record.class.name), adds a validation error, and returns false. In development, a special message prompts starting clamd.`j

  • If the scan returns true: returns true (validation passes).

• Audit logging

  • Common::VirusScan emits the same "ClamAV Virus Scan Audit" log for Shrine scans as for other callers.

ClamAV sidecar behavior

Healthy behavior

• Startup

  • ClamAV container starts alongside vets-api.

  • Loads virus databases (from the image or mounted data/S3-synced volume).

  • Binds to its configured TCP port and logs that it is ready.

• Steady state

  • Occasional log lines for:

    • Definition updates (depending on configuration).

    • Internal housekeeping.

  • For each scan:

    • A short-lived log entry with request/response context.

  • Resource profile:

    • Spike in memory/CPU during DB load.

  • Relatively stable usage in steady state with periodic spikes during scans.

• From vets-api’s point of view

  • ClamAV::PatchClient calls return within a few hundred ms under normal load.

  • Common::VirusScan.scan returns:

    • true for clean files.

    • false for confirmed infections or when configured to treat non-scannable cases as unsafe.

  • Audit logs show scan_result: 'clean' with reasonable scan_duration_ms.

Common error patterns

Expected / benign

• Detection of real or test malware (e.g., EICAR)

  • Result: { safe: false, virus_name: 'Eicar-Test-Signature' } or similar.

  • vets-api behavior:

    • Common::VirusScan.scan returns false.

    • UploaderVirusScan raises VirusFoundError; file is deleted.

  • This is expected behavior and not a ClamAV failure.

Unexpected / problematic

• Daemon unreachable

  • Symptoms:

    • Connection errors (ECONNREFUSED, timeouts) from ClamAV::PatchClient.

    • Errors logged in Common::VirusScan and error audit events.

  • Impact:

    • Upload flows that rely on scanning fail.

    • If health checks are tied to ClamAV readiness, pods may be marked Unready or restart.

• Database load failures

  • Symptoms:

    • ClamAV logs show DB load errors or repeated restarts.

  • Impact:

    • Scans may fail outright.

    • Downstream, vets-api sees exceptions or very slow responses.

• High memory usage / OOM

  • Symptoms:

    • ClamAV container is OOMKilled by Kubernetes.

    • Frequent pod restarts.

  • Impact:

    • Reduced capacity during churn.

    • Possible spikes in 5xx errors for upload endpoints.

Debugging procedures (Kubernetes + vets-api)

1. Identify pods and containers in trouble

• Check vets-api pods for:

  • Unready status, repeated restarts, or CrashLoopBackOff.

• Inspect container-level status:

  • Confirm whether the ClamAV container is failing (CrashLoop, OOMKilled, failing probes) while Rails appears healthy.

2. Inspect ClamAV logs

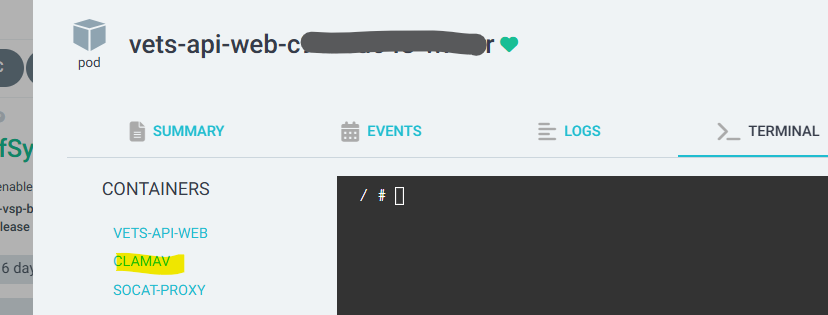

• View logs for the ClamAV container in an affected pod:

  • Look for:

    • DB load success/failure.

    • Port binding issues.

    • Repeated crashes/restarts.

    • Timeouts or resource exhaustion.

• Correlate with vets-api logs:

  • Error audit logs from Common::VirusScan (scan_result: 'error').

  • Exceptions originating from ClamAV::PatchClient or Common::VirusScan.scan.

  • Warnings such as "Clamav scan from other location disabled".

3. Validate vets-api configuration

• Feature flags

  • Flipper.enabled?(:clamav_scan_file_from_other_location):

    • If disabled, only files already under clamav_tmp/ are scanned.

    • Any other file path returns { safe: false }, which uploaders treat as infected.

  • Settings.clamav.mock:

    • If true, scans always pass (returns true) without talking to ClamAV.

    • Acceptable for local/dev/test, not for production.

• Temp file handling

  • Confirm Common::FileHelpers.generate_clamav_temp_file writes to a path that:

    • Is reachable and readable by ClamAV.

    • Resides in a filesystem with enough space.

  • Ensure clamav_tmp/ exists and has correct owner/mode.

• Audit logs

  • Use "ClamAV Virus Scan Audit" entries to:

    • Confirm scans are being triggered for specific upload endpoints.

    • Examine scan_duration_ms for latency issues.

    • Spot patterns (e.g., errors only for certain file sizes or types).

4. Common remediation steps

• ClamAV container repeatedly failing

  • Check:

    • Image version changes.

    • ClamAV configuration.

    • Resource limits/requests.

  • Mitigations:

    • Increase memory/CPU.

    • Adjust DB loading or update behavior if too heavy.

    • Roll back to a previous known-good image if a new release is faulty.

• Connection errors from Rails

  • Validate:

    • ClamAV daemon is listening on expected host/port.

    • No network policy changes blocking traffic inside the pod.

  • Consider:

    • Restarting affected pods.

    • Temporarily enabling Settings.clamav.mock only if acceptable from a risk standpoint (and documenting the window).

• Slow scans

  • Look for:

    • Large or numerous concurrent uploads.

    • High CPU contention on ClamAV pod(s).

  • Options:

    • Increase resources.

    • Rate-limit or size-limit uploads upstream.

    • Add retry behavior or backpressure in upload flows.

Impact on vets-api pods and request handling

• Pod health

  • Any ClamAV sidecar failure can:

    • Fail readiness/liveness probes.

    • Trigger pod restarts and churn.

  • Systemic ClamAV issues (bad image, DB problems) can reduce overall cluster capacity.

• Request behavior

  • For endpoints using UploaderVirusScan:

    • Requests block until Common::VirusScan.scan completes.

    • If:

      • Scan returns true: upload proceeds and file is stored.

      • Scan returns false: upload is rejected with VirusFoundError; file deleted.

      • Scan raises error: request typically fails with a 5xx (depending on controller handling).

• Observability

  • Combine:

    • Application logs ("ClamAV Virus Scan Audit", Rails exceptions).

    • Sidecar logs (daemon startup, DB load, errors).

    • GitHub Actions workflows for image/DB pipeline health.

ClamAV image and database pipelines (vsp-infra-clamav)

Repo: vsp-infra-clamav

Image mirroring to ECR (mirror-images.yml)

• Trigger

  • Daily cron around 12:30 PM Eastern (with separate EST/EDT entries) plus on-demand workflow_dispatch.

  • Time-gated-job ensures the job only runs when the Eastern hour is 12 unless manually triggered.

• Behavior

  • prepare-build:

    • Checks out the repo.

    • Reads versions.json and exports .components as a JSON array (config).

  • mirror:

    • Matrix over config; each entry has version and repo.

    • Sets NOW (e.g., YYYY-MM-DD-HH) for tagging.

    • Configures AWS credentials and logs into ECR in us-gov-west-1.

    • Builds the ClamAV Docker image from ./Dockerfile with:

      • APP_VERSION=${{ matrix.versions.version }}

      • REPO=${{ matrix.versions.repo }}

    • Pushes the image to:

      • ${registry}/dsva/clamav:${GITHUB_SHA}-${NOW}

• Failure handling

  • notify-on-failure sends a Slack alert to channel #platform-cop-be-notifications when the mirror job fails:

    • Explains that vets-api cannot receive updated ClamAV images and that downstream “Release and Update Manifests” workflows are blocked.

    • Suggests checking:

      • Docker build errors.

      • freshclam issues (e.g., CDN/network).

      • ECR login/push permissions.

      • Base image pulls (e.g., clamav/clamav:1.4 from Docker Hub).

Virus database sync to S3 (s3_sync.yml)

• Trigger

  • Twice daily:

    • Cron for 12:01 AM / 12:01 PM Eastern (EST + EDT variants).

  • Also supports manual workflow_dispatch.

  • time-gated-job:

    • If manually triggered: always enables the job.

    • If scheduled: only continues when current Eastern hour is 0 or 12.

• Behavior

  • upload_to_s3 (runs only when gated output is true):

    • Checks out the s3-upload branch.

    • Assumes an AWS role via OIDC in us-gov-west-1.

    • Logs into Docker Hub.

    • Builds the ClamAV Docker image from ./Dockerfile and loads it locally as clamav-image:latest

    • Creates a container: clamav-container.

    • Copies database files out of the container into a local database/ directory:

      • data/bytecode.cvd

      • data/main.cvd

      • data/daily.cvd

    • Uploads database/ to AWS s3

• Failure handling

  • notify-on-failure sends a Slack alert to channel #platform-cop-be-notifications when the S3 sync fails:

    • Explains that ClamAV DBs (main.cvd, daily.cvd, bytecode.cvd) were not updated in S3.

    • Suggests checking:

      • Docker build/container creation.

      • docker cp for DB extraction.

      • AWS credentials, bucket permissions, and network to us-gov-west-1.

    • Calls out the risk of stale virus definitions for any infrastructure pulling DBs from dsva-vetsgov-utility-clamav.

Relationship to vets-api reliability

• If image mirroring fails:

  • New ClamAV image versions are not pushed to ECR.

  • vets-api environments may:

    • Continue using older images with outdated ClamAV or OS components.

    • Experience deployment failures (ErrImagePull) if no valid image exists.

• If DB sync fails:

  • S3 bucket may contain stale DB files.

  • ClamAV sidecars that depend on S3 for DBs will run with old virus signatures.

  • Virus scanning remains functional but is less effective against new threats.

Monitoring

These are all Datadog links that assume you have Datadog access.

• ClamAV CPU Usage

• ClamAV Memory Usage

• ClamAv failed to start in {{ env.name }}

• Clamav Errors

• Error in ClamAV on {{pod_name.name}}: {{log.message}}

Help and feedback

• Suggest content changes to this page.

• Submit new Platform Website content.

• Get help from the Platform Support Team in Slack.

• Submit a feature idea to the Platform.
